HIGH-QUALITY FIRE RESISTANT WALL SYSTEM

Trimoterm FTV fire resistant panels are used for a wide range of external façade cladding, internal partition walls, fire walls and ceilings for either leisure, commercial, industrial, hygienic and other facilities.

Due to their strong fire resistance, excellent thermal and sound insulation, as well as excellent hygienic characteristics, Trimoterm prefabricated wall panels can also be successfully used in the most demanding environments, such as in the energy production and food-processing sectors and the pharmaceutical industry.

The Qbiss One prefabricated metal wall system was developed in response to architectural and design demands; durability, flatness, rounded corners, shadow/flush joints and a vast array of colour options extend possibilities and different installation styles add a further dimension for those architects looking to expand to the limits of the envelope design.

TRIMOTERM Advantages

✔️ Quality
Fire resistant wall system with outstanding quality

✔️ Fire resistance
Strong fire resistance up to 240 min

✔️ Insulation
Prefabricated insulated walls with excellent thermal and sound isolation

✔️ Resistance and performance
Best water resistance and air tightness performance in the market.

✔️ Worldwide realized projects and certificates

✔️ Structural performance
Best water resistance and air tightness performance in the market

✔️ Excellent customer service

FACADE CONSTRUCTION

Horizontal insulated wall panel system

Horizontal façade

A horizontal installation of a façade is extremely effective due to the self-supporting characteristics of Trimoterm façade panels; technically it ensures optimal usage of the façade panels’ load-bearing capacity. A horizontal installation enables the use ofdifferent panel widths, numerous details and various textures. The basic fixing method of a horizontal façade involves the use of the aluminium HF102 profile. It is possible to combine various widths of panels too.

Vertical façade

Vertical panel installation follows classical installation methods and is the most suitable choice for high constructions with heavy external loading.

Vertical insulated wall panel system

Segmental insulated wall panel system

Segmental façade

A segmental façade enables the formation of rounded surfaces and gives buildings a new dimension. Standard segmental façade solutions provide quick, simple and reliable construction of even the most demanding buildings.

FIXING SYSTEM

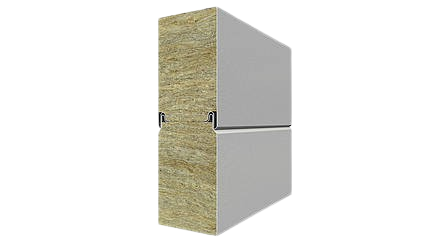

STANDARD system

Trimoterm standard system (FTV) represents the basic fixing method of Trimoterm panels and is suitable for horizontal, vertical and segmental installation of panels.

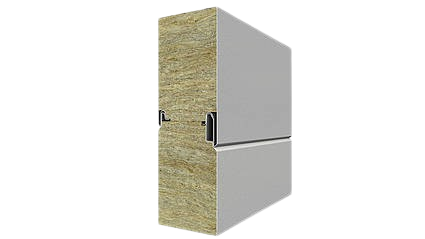

INVISIO system

Trimoterm FTV Invisio (FTV HL) fireproof façade panels offer a clean façade outlook with no visible fixings. Panels are mainly intended for vertical installation, but under certain conditions and with limitations, can also be used for various horizontal cladding applications.

COATINGS AND COLOURS

Steel sheet metal is hot galvanised in compliance with EN 10346, and additionally protected by an organic coating in accordance with the coil-coating process (DIN EN 10169/1).

The following basic types of organic coatings protection are applied to steel sheet metal based on:

SP polyester
PVDF polyvinylidene fluoride
PUR polyurethane
PVC polyvinyl chloride, coating or film

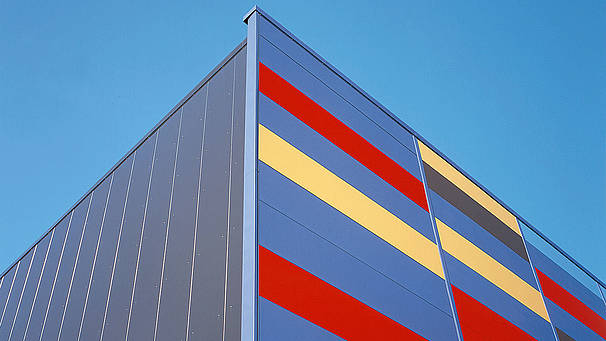

We have a wide range of colour finishes available for any building, which are engineered to capture the perfect look internally or externally of the building design. Colours available are: white (R9010), grey white (R9002), cream (R1015), light grey (R7035), agate grey (R7038), tele grey 2 (R7046), silver (R9006), dark silver (R9007), traffic red (R3020), moss green (R6005), gentian blue (R5010) and anthracite (R7016).

Wide range of colour finishes available
