STRUCTURAL CEILING SYSTEMS

Complimenting our range of data centre specific products & services CRS manufactures & installs structural grid ceiling systems purpose developed for mission critical data centre environments.

Designed with flexibility, customization & ease of install in mind, CRS Ceiling Systems are the optimal choice for applications where complex and concentrated overhead services are required including lighting, cable trays, fibre duct, fire protection, and power busways. CRS ceiling systems allow for extremely rapid installation times providing extensive cost benefits over the more traditional & cumbersome structural ceiling systems.

All ceiling tiles are manufactured from high quality galvanneal sheet, preventing any risk of zinc whisker contamination, and ceiling tiles are finished with powder coating to specific colour requirements. Mineral fibre ceiling tiles can also be supplied subject to application requirements.

  • Addition of Ceiling Systems allows for turn-key Data Centre Solutions
  • Compatible with overhead services
  • Flexible & Customizable
  • Rapid Installation
  • Fully compatible with H&C Aisle Containment

ARCHITECTURAL EXTRUDED ALUMINIUM CEILING





UTILITY ROLL FORMED STEEL STRUT CEILING

  • CRS delivers additional value through the customization of ceiling tiles to include penetrations for mounting of other services. This includes customized tiles for installation in specific locations across complete data center areas, including cut-outs for recessed luminaires, which delivers superior illumination results. Penetrations for mounting a range of environmental BMS sensors can also be provided, reducing upfront procurement and installation costs in addition to providing an aesthetically superior solution. Provided relevant information can be secured prior to final manufacture, we are happy to provide penetrations and will take the lead in coordinating with other trades to confirm required sizes and location details.
  • CRS provides two core ceiling grid construction types as follows:
    – Architectural extruded aluminum
    – Utility roll formed steel strut

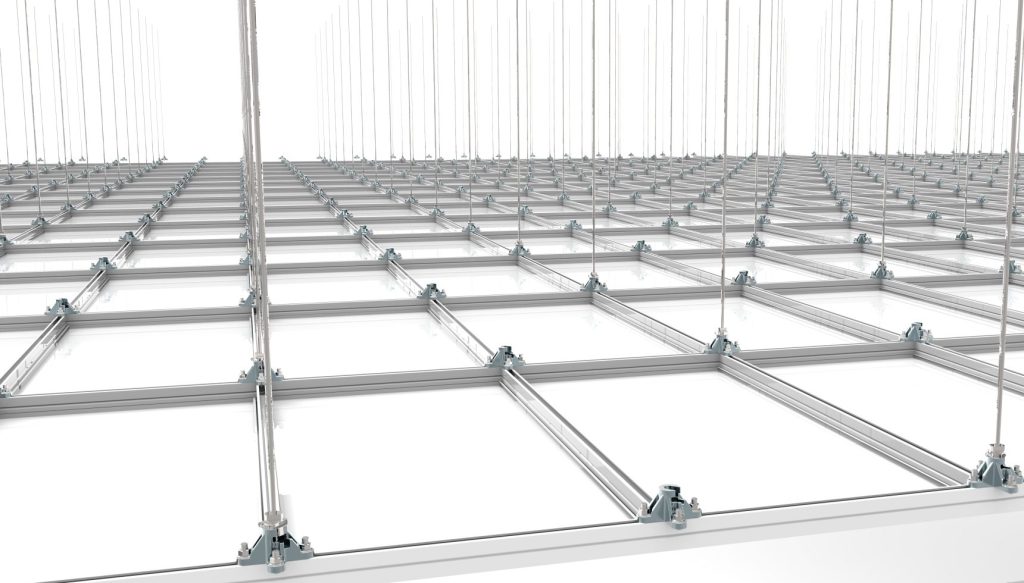

ARCHITECTURAL EXTRUDED ALUMINIUM CEILING

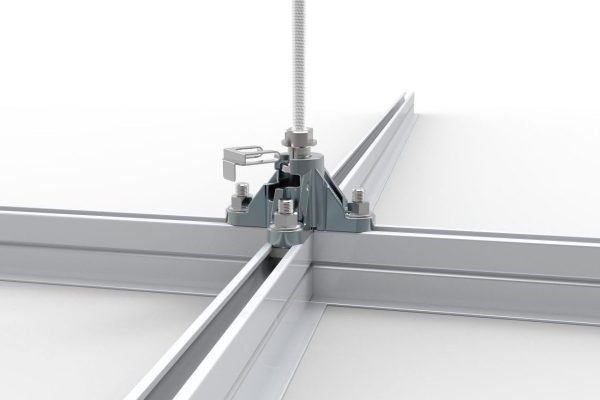

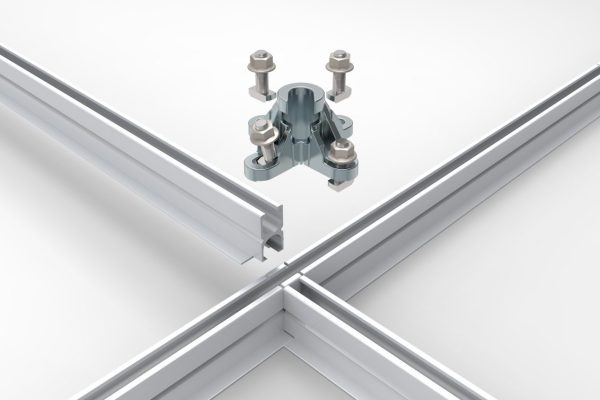

This ceiling utilizes a proprietary engineered grid extrusion profile with integral channels for inserting channel nuts and T-bolts for mechanical connections. The innovative grid bracket is designed to accommodate a spindle for ceiling height trimming adjustments.

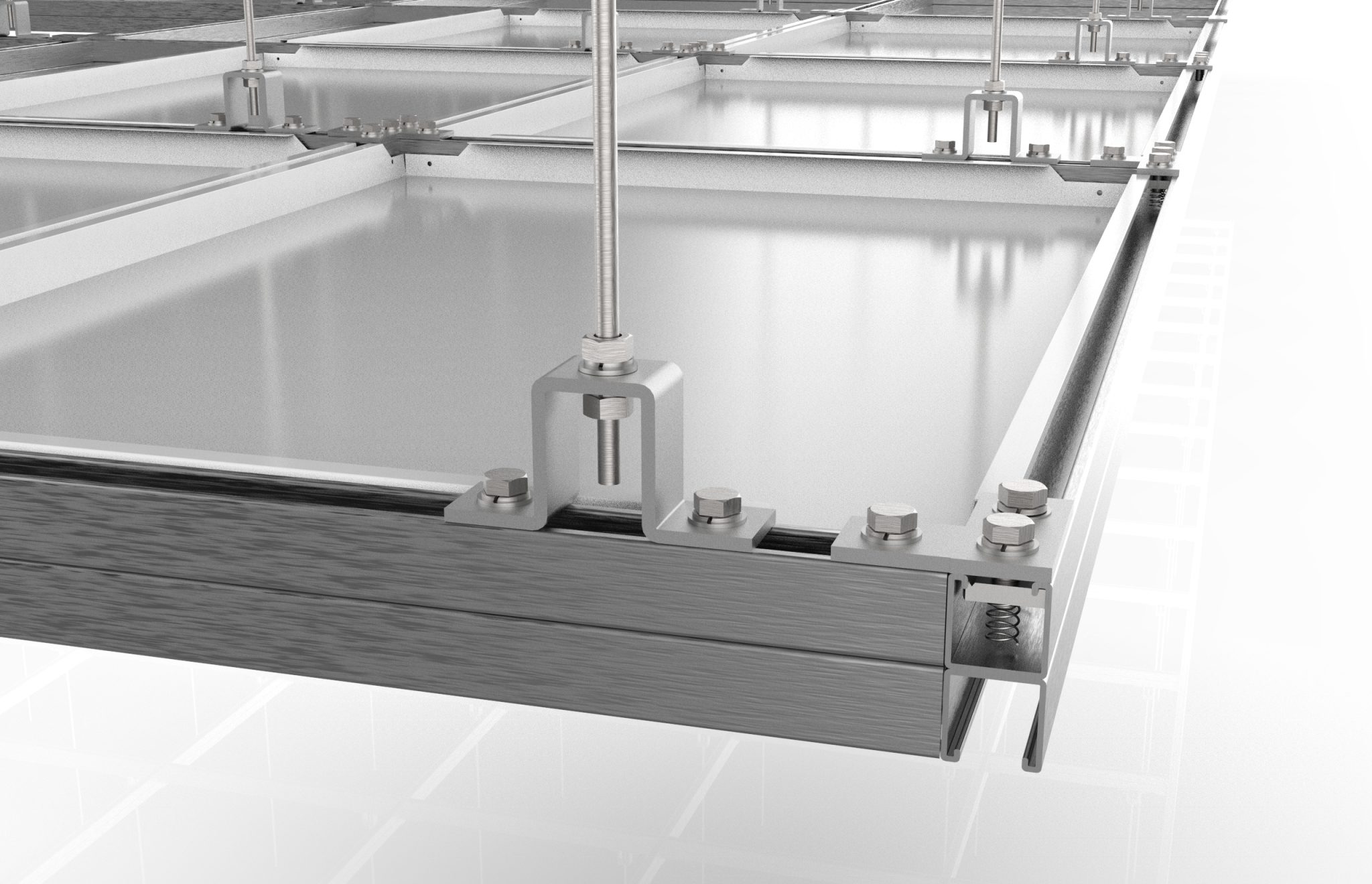

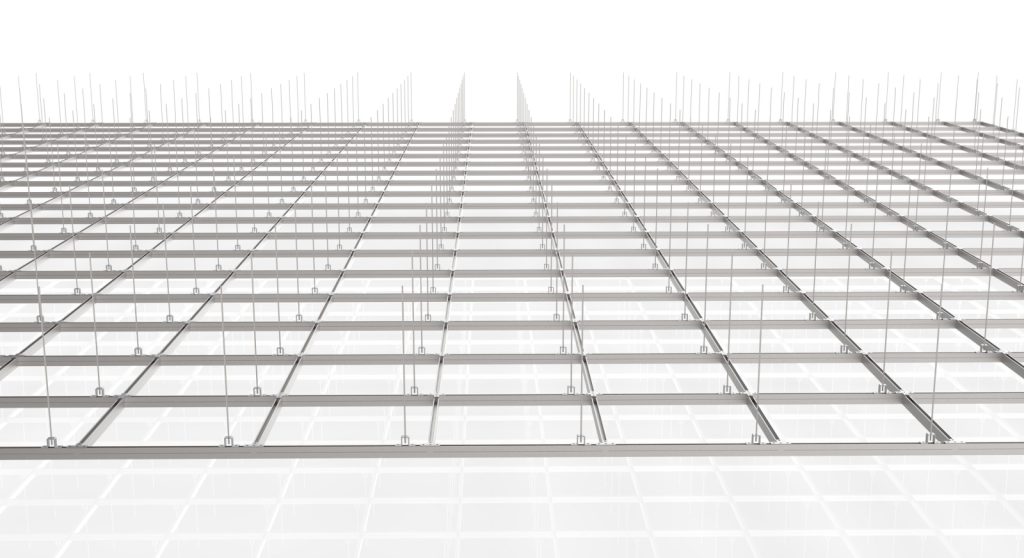

UTILITY STRUCTURAL CEILING

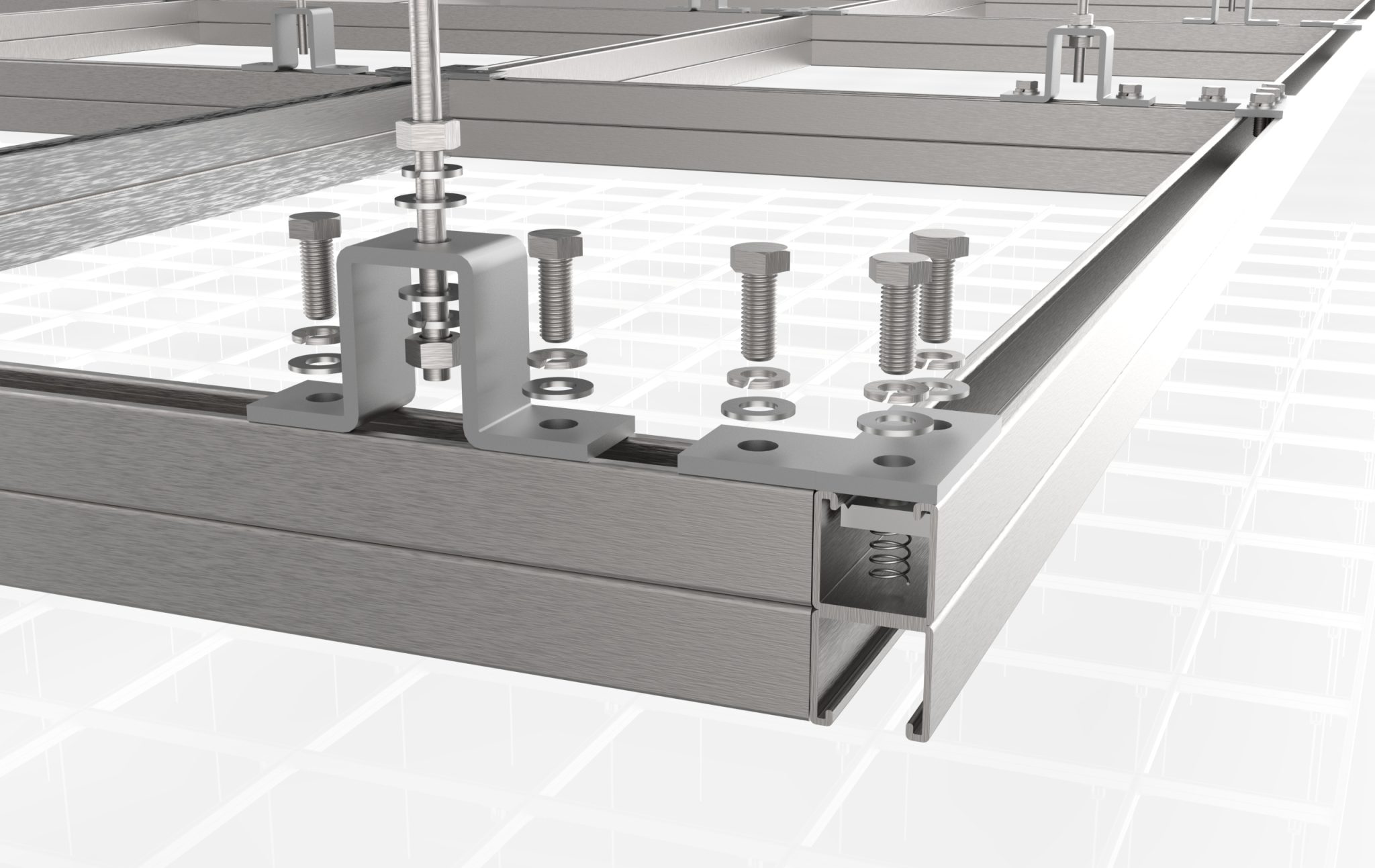

Utilising industrial-grade, heavy-duty commercial strut channels, brackets and accessories, the utility ceiling is designed to provide a robust solution` for arduous applications.

Subject to requirements, the ceiling can support a uniform load of 5.4 kPa and a maximum mid-span point load of 3.9kN.
